What Is RAG Architecture? End-to-End Guide for 2026

Q: Is RAG better than fine-tuning?

They solve different problems. Fine-tuning is best for teaching a model a persistent behavior, format, or domain style. RAG is best for providing a model with dynamic, current knowledge that changes frequently. Most production enterprise systems use both: fine-tuning for task alignment and RAG for grounded knowledge retrieval.

Why does RAG architecture matter?

“To address LLM challenges like inaccurate and irrelevant responses, data and analytics architects should use the RAG architecture.”
— Gartner’s reference architecture brief for RAG

Most enterprise AI systems that underperform in production fail because of what the model was given to work with — the context. RAG architecture governs that input layer.

An LLM trained on public data has no knowledge of your internal metric definitions, your data lineage, your governance policies, or the canonical version of any business term used by your teams. RAG architecture closes that gap — without intentional architectural decisions at each layer, the gap just becomes invisible.

Three specific stakes make RAG architecture a strategic priority:

Answer quality: Architecture determines whether retrieved content is current, relevant, and trustworthy, not just semantically similar to the query.
Hallucination risk: Systems with ungoverned retrieval layers surface technically relevant but practically wrong content, producing confident-sounding answers grounded in stale or conflicting information.
Governance and compliance: Every answer a RAG system produces is traceable to what it retrieved. If retrieval is ungoverned, compliance exposure follows.

Gartner predicted that using RAG within applications will soon become a fundamental and necessary competency for any organization using generative AI. By 2026, that prediction has become table stakes. The question is no longer whether to adopt RAG, but how well your architecture governs what it retrieves.

How RAG differs from fine-tuning

A common point of confusion is when to choose RAG over fine-tuning. The difference is where the knowledge lives:

Fine-tuning: Changes the model’s weights permanently. Best suited for teaching a model a specific style, task format, or domain behavior that does not change frequently.
RAG: Changes what the model sees at inference time. Best suited for dynamic knowledge, including policies, metric definitions, and documentation that changes regularly.

How RAG works end to end

The canonical RAG pipeline moves through six stages from a user query to a grounded response:

Prompt and query
Embed the query
Retrieve
Rerank and compress
Construct prompt
Generate and validate

Production RAG systems aren’t static. Every query, correction, and feedback signal is an opportunity to improve retrieval quality. Incorporating an observability and monitoring layer ensures that essential RAG evaluation metrics get tracked.

What does RAG architecture involve?

RAG architecture spans five distinct layers. Each layer introduces decisions that affect every layer downstream.

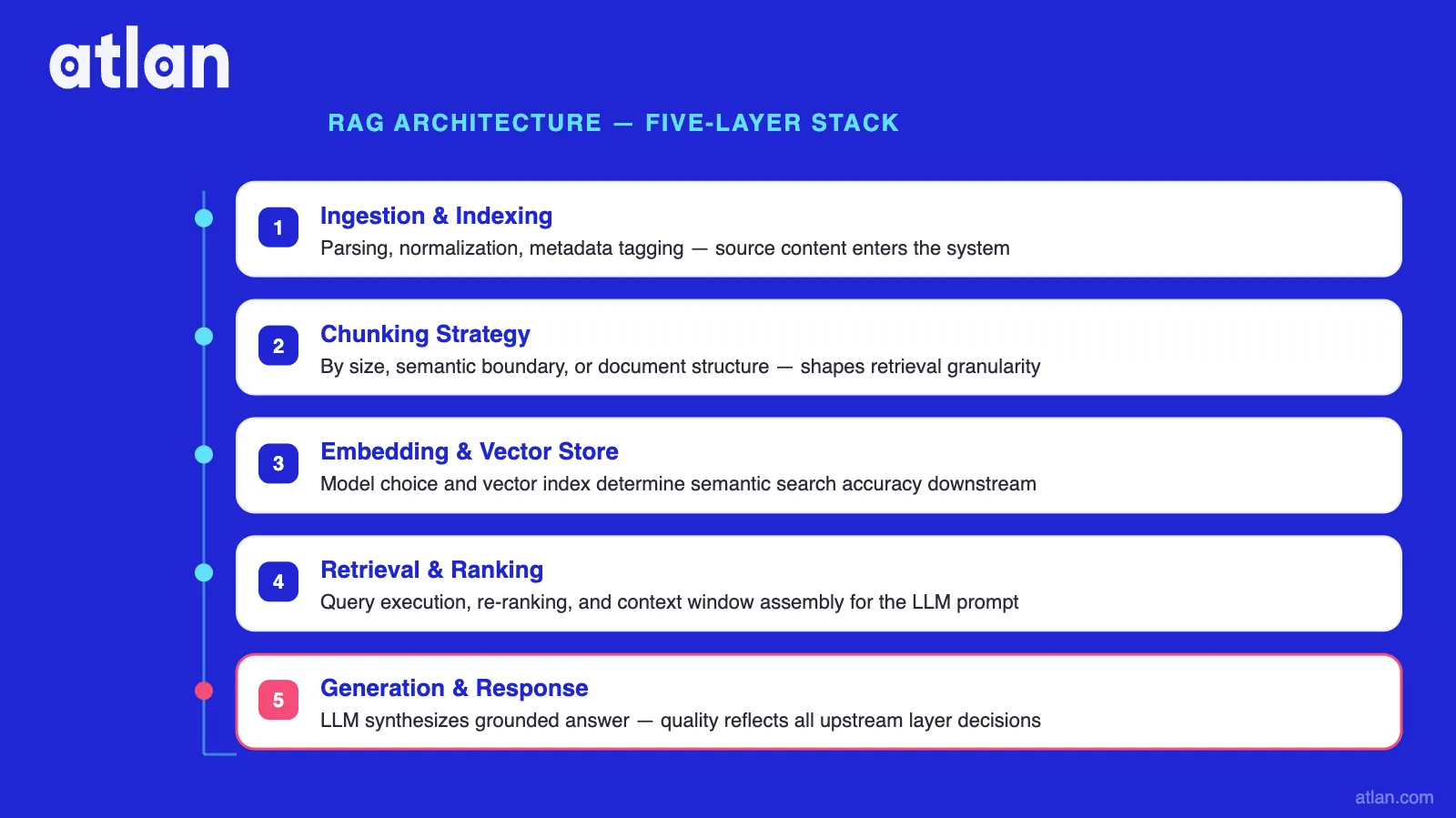

RAG architecture five-layer stack

1. Ingestion and indexing

This layer governs how source content enters the system. Decisions include:

How documents are parsed and normalized
How content is chunked (by size, by semantic boundary, or by document structure)
What metadata is attached (ownership, domain, effective date, sensitivity, lineage identifiers)
Where the resulting index is stored

2. Retrieval

This layer governs how the system finds relevant content at query time. Most production systems combine semantic search using dense vector embeddings with keyword search using BM25, applying filters based on domain, access permissions, or content classification.

Advanced patterns also traverse knowledge graphs or context graphs to resolve ambiguous terms and surface relational context.

3. Reranking and context preparation

Retrieved chunks are not all equally useful. This layer applies a cross-encoder or reranker to score true relevance, filters out noisy or redundant chunks, and compresses the remaining context to fit the model’s token budget.

This is where “lost in the middle” failures originate: if too many chunks are passed to the model without prioritization, the most relevant content gets buried.

4. Generation

The model receives the curated context alongside the user query and produces a grounded response, typically with citations back to source passages. Advanced patterns include self-critique (Self-RAG), where the model evaluates its own answer against the retrieved context, and corrective RAG (CRAG), where the system re-retrieves when retrieved content fails a quality check.

5. Evaluation

The pipeline is measured continuously against core metrics: faithfulness, answer relevance, context precision, and context recall. Evaluation is not a one-time step. Every corrected production query is an evaluation signal, and the evaluation loop is how the retrieval index improves over time.

What are the most common RAG architecture patterns?

By 2025, RAG had evolved from a single pattern into a family of approaches. Choosing the right pattern depends on the complexity of your queries, the structure of your knowledge base, and the governance requirements of your organization.

1. Naive RAG

Naive RAG ingests documents, embeds chunks, retrieves by similarity, generates. This architecture works for straightforward factual queries over unstructured content but fails on multi-hop questions and any domain where context freshness matters.

Think of naive RAG as giving an AI agent access to a shared folder: it can find the right file, but it has no way to know whether that file is current or who last verified it.

2. Advanced RAG

Advanced RAG improves on naive RAG through better chunking, hybrid retrieval, reranking, and query expansion. With advanced RAG, you get meaningfully higher retrieval quality, though index governance — whether retrieved content is actually trustworthy — remains unaddressed.

3. GraphRAG

GraphRAG replaces or augments the flat vector index with a knowledge graph, making retrieval a matter of graph traversal. GraphRAG enables multi-hop reasoning and produces explainable answer paths across connected facts.

Gartner lists GraphRAG as one of the top data and analytics trends for handling complex use cases in 2026, highlighting how D&A leaders can overcome RAG’s limitations by supporting LLM interactions with contextual information and knowledge graphs.

4. Context-graph-driven RAG

Context-graph-driven RAG extends GraphRAG by incorporating operational metadata including lineage, ownership, quality scores, and governance policies. Research shows knowledge-graph-enhanced RAG achieving accuracy above 81% in specialized domains, a 6.8% improvement over traditional RAG.

5. Agentic RAG

Agentic RAG distributes retrieval across specialized agents that handle query decomposition, source-specific retrieval, reranking, and validation. Agentic RAG is best suited for complex queries across large, heterogeneous knowledge bases where no single retrieval strategy covers all cases.

What are the business benefits of RAG architecture?

Enterprises that deploy well-governed RAG systems consistently report improvements across four dimensions:

Reduced hallucination rates: Graph-based retrieval with governed metadata reduces agent hallucination rates by more than 40% compared to unstructured document retrieval, according to research published in PMC. Governed retrieval surfaces not just relevant text but verified definitions, intact lineage, and ownership-confirmed content.
Faster time to answer: Instead of routing questions to subject matter experts or manually searching documentation, employees get answers grounded in the organization’s own context.
Auditability without overhead: Because RAG answers are traceable to specific source passages, compliance and audit workflows gain a record of what information informed each decision.
Model efficiency: Organizations can deploy smaller, less expensive models for domain-specific tasks when those models have access to a well-governed retrieval layer.

What are the most common challenges in RAG architecture and how do you overcome them?

The biggest challenge with RAG architecture is when systems surface content that matches the query semantically but does not reflect current organizational definitions — for example, a search for “churn rate” returning an old marketing definition rather than the finance team’s canonical calculation.

This happens when the retrieval index is stale. Metric definitions change, policies are updated, and schema changes propagate through the data layer without triggering index updates. Atlan’s context drift detection framework identifies three layers where this happens:

Schema drift: Tables are renamed, columns are deprecated, and joins that were valid six months ago no longer hold.
Semantic drift: Business definitions evolve but the glossary and index entries are not updated to match.
Staleness drift: Ownership lapses, last-reviewed dates go stale, and content that was accurate when it was indexed becomes unreliable.

How to overcome context drift

Attach governance metadata at ingestion: Every chunk should carry an owner, an effective date, a last-validated timestamp, and a lineage identifier.
Monitor the context layer, not just the inference layer: Context-layer monitoring catches index degradation before it surfaces in user-facing outputs.
Treat trusted dashboards as evaluation ground truth: The questions your team has been answering correctly in Tableau or Power BI are your best source of ground truth for RAG evaluation.
Build invalidation triggers: When a glossary term changes, a schema is altered, or an asset is deprecated, those events should trigger index updates.

The “lost in the middle” failure

A second common failure mode occurs when the retrieval layer passes too many chunks to the model without sufficient prioritization. The correct evidence exists in the context window, but it is buried between lower-quality chunks.

“Model performance degrades significantly when changing the position of relevant information. In particular, performance is often lowest when models must use information in the middle of long input contexts.”
— Stanford research on the ‘lost in the middle’ failure

Reranking and context compression — stage three of the pipeline — are the architectural response to this failure.

Security and access control gaps

Vector stores without metadata-enforced access controls act as flat buckets. A RAG system without governance-aware retrieval can surface content to users who should not see it, because vector similarity does not respect permission boundaries.

The solution is to enforce access control at the retrieval filter level, not at the presentation layer, and to audit retrieval logs alongside generation logs.

How Atlan operationalizes the fix

Atlan’s Context Engineering Studio and Context Agents are built to operationalize these solutions at enterprise scale.

The Context Engineering Studio is the workspace where teams bootstrap, test, and continuously improve the context layer used for retrieval by RAG systems. Context Agents automatically generate and enrich the metadata that feeds the retrieval index — descriptions, glossary term links, ownership suggestions, governance annotations, and data quality signals.

Atlan’s metadata lakehouse centralizes technical, semantic, and governance metadata across all data and AI assets in an open, scalable store. Atlan’s MCP server exposes this entire context layer to any MCP-compatible agent or RAG pipeline at inference time, with access controls enforced at this layer, not at the presentation layer.

Real stories from real customers: Future-forward enterprises building enterprise context layers for AI

"AI initiatives require more context than ever. Atlan's metadata lakehouse is configurable, intuitive, and able to scale to hundreds of millions of assets. As we're doing this, we're making life easier for data scientists and speeding up innovation."

— Andrew Reiskind, Chief Data Officer, Mastercard

Watch Now →

"With Atlan, we cataloged over 18 million data assets and 1,300+ glossary terms in our first year, so teams can trust and reuse context across the exchange."

— Kiran Panja, Managing Director, CME Group

Watch Now →

Moving forward with RAG architecture

RAG architecture is the backbone of enterprise AI. The decisions made at each layer — from how content is chunked and indexed to how retrieval is filtered and evaluated — determine whether a system produces answers that are reliably correct.

The patterns available today, from naive RAG to GraphRAG to agentic RAG, give organizations a range of starting points matched to their query complexity and governance requirements. The failure modes are consistent: stale indexes, ungoverned retrieval, and context that looks trustworthy but isn’t.

Getting RAG right in production is fundamentally a context infrastructure problem. The retrieval layer is only as reliable as the underlying context. Atlan’s context layer, context agents, metadata lakehouse, and MCP server exist to make that foundation governed, current, and trustworthy by default.

Book a demo

FAQs about RAG architecture

1. What is the difference between RAG and a vector database?

A vector database is one component of a RAG architecture. It stores dense vector embeddings of document chunks and supports similarity search at query time. RAG architecture encompasses the full pipeline: ingestion, indexing, retrieval, reranking, generation, and evaluation. A vector database alone is not a RAG system any more than a storage system alone is a data warehouse.

2. Is RAG better than fine-tuning?

They solve different problems, so “better” depends on what you need. Fine-tuning is best for teaching a model a persistent behavior, format, or domain style. RAG is best for providing a model with dynamic, current knowledge that changes frequently. Most production enterprise systems use both: fine-tuning for task alignment and RAG for grounded knowledge retrieval.

3. What is naive RAG and why does it fail in production?

Naive RAG is the simplest implementation: ingest documents, embed chunks, retrieve by vector similarity, pass to a model, generate. It fails in production because it treats the retrieval index as a static, trusted source when enterprise knowledge is neither static nor uniformly trustworthy. Policies change, definitions drift, and ownership lapses. Naive RAG has no mechanism to detect or handle any of those conditions.

4. What is GraphRAG and when should you use it?

GraphRAG replaces or augments the flat vector index with a knowledge graph, making retrieval a matter of graph traversal rather than vector similarity alone. It is best suited for queries that require multi-hop reasoning across connected facts — regulatory analysis, impact assessment, or questions that span multiple domains and require explainable answer paths.

5. How do you evaluate a RAG system?

Production RAG evaluation typically covers four core metrics: faithfulness, answer relevance, context precision, and context recall. Tools including RAGAS, TruLens, and DeepEval support this layer. The evaluation gap that most teams miss is context trustworthiness: whether the retrieved content is current, correctly defined, and owned. Standard metrics can show healthy scores while the index is drifting.

6. What is context drift in RAG and why does it matter?

Context drift is the progressive divergence between what a RAG system’s index contains and what your organization actually knows, defines, and enforces. It occurs across three layers: schema drift, semantic drift, and staleness drift. It matters because context drift is invisible to standard RAG evaluation metrics. A system with advanced context drift can maintain high faithfulness scores while producing answers that are organizationally wrong.

7. What does it mean to govern a RAG system?

Governing a RAG system means applying the same access controls, data quality standards, lineage tracking, and ownership accountability to the retrieval layer that you apply to the rest of your data estate. In practice, this means attaching governance metadata at ingestion, enforcing access permissions at retrieval time, monitoring the context layer for drift and staleness, and maintaining an audit trail of what information informed each generated response.

This guide is part of the Enterprise Context Layer Hub — 44+ resources on building, governing, and scaling context infrastructure for AI.
