What Is Pinecone Vector Database?

---

Pinecone is a fully managed, serverless vector database that enterprise AI teams use to store embeddings and retrieve them by semantic similarity, one of the systems Atlan’s context layer sits upstream of, governing what gets embedded before Pinecone ever indexes it. Founded by Edo Liberty, Pinecone has raised $138M from Andreessen Horowitz, ICONIQ, Menlo Ventures and Wing Venture Capital, and is a default choice for vector search without running your own infrastructure.^[1] Pinecone targets 200ms serverless query latency at 80% p95 recall with no tuning.^[2] Gartner forecasts a 75.3% CAGR for the vector database segment of the DBMS market^[12], and Fortune Business Insights projects the global market to grow from $2.58 billion in 2025 to $17.91 billion by 2034.^[13]

Pinecone is serverless and closed-source; pod-based indexes are legacy and closed to new customers. Customers who signed up for a Standard or Enterprise plan on or after August 18, 2025 cannot create them at all, and every new index uses the serverless architecture.^[3]

---

What is Pinecone?

Pinecone is a company and product: a vector database built to store and search embeddings at production scale, without requiring the team using it to run servers, tune indexes, or plan capacity. Founder Edo Liberty now serves as Chief Scientist after Pinecone brought in Ash Ashutosh as CEO for its next phase of growth.^[4]

A vector database’s job is to make an large language model behave as if it knows things it was never trained on, retrieving the right chunk of text at query time instead of relying on parameters frozen at training, a workaround that exists because LLMs are stateless between calls by default. Pinecone competes in that space against self-hosted engines, open-source projects, and Postgres extensions, each trading managed simplicity for a different mix of control, cost, and scale.

This page covers what Pinecone specifically is, how it works, and where a team still has to solve problems on its own after it’s running. A vector database like Pinecone earns its place in an agentic AI stack by answering one narrow question well: given this query, what’s closest in what’s already indexed. What should have been indexed, and whether it can still be trusted, is a separate problem no vector database is built to answer.

---

How does Pinecone work?

Two decisions shape a Pinecone deployment: how the service runs, and what kind of index the data lands in.

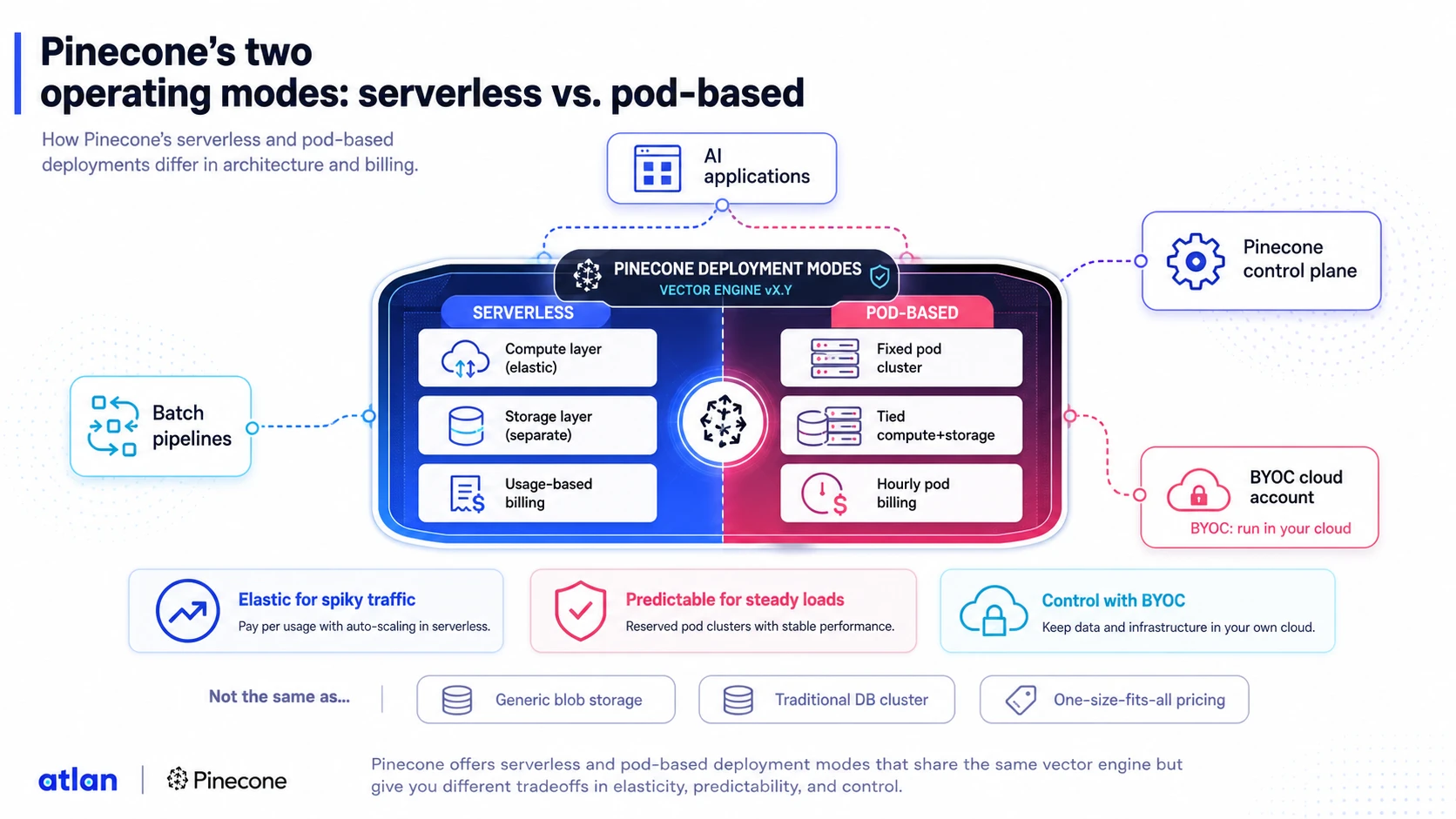

Serverless architecture

Serverless is Pinecone’s architecture for new projects: separate compute from storage so each scales independently, and bill based on what you actually store and query rather than a fixed cluster size.^[6] There’s no pod sizing, no rebalancing, and no idle compute overnight. Pricing follows storage plus read and write units, a better fit for variable traffic or spiky ingestion than forecasting vector counts eighteen months out. Bring Your Own Cloud extends this for residency requirements: Pinecone’s data plane runs inside your AWS, GCP, or Azure account, Pinecone “never has direct access to your cloud account,” and the control plane never stores or processes your vectors.^[5]

Document indexes and the query path

New indexes are document indexes by default. A document index declares a schema that mixes dense_vector, sparse_vector and full-text string fields, and serves BM25 full-text search with Lucene queries, semantic search and sparse-vector search together through the Documents API. Vector indexes are still supported through the Vectors API for embedding-only workloads.^[7]

Once an index exists, the query path is the same: natural language, often shaped by prompt engineering for retrieval, converts to a vector via an embedding model built on a transformer architecture, Pinecone’s nearest-neighbor search finds the closest matches, an optional filter narrows the set, and matched payloads return to the app. Each step depends on what was embedded and indexed.

Pinecone indexes and retrieves vectors. Deciding what belongs in the index is a separate, upstream job.

---

What is metadata filtering and namespaces in Pinecone?

Two mechanisms narrow a Pinecone search beyond raw similarity, and the constraints on each one are the part new users trip over most often.

Namespaces segment an index into isolated partitions, typically one per tenant, document set, or environment; you can query exactly one namespace, or none, per request. Searching across several namespaces in one call means metadata filtering is the right tool instead.^[8] Metadata filters are key-value predicates attached to each vector, applied alongside similarity search: only records where department = "Finance", after a given date, or tagged status = "certified". Pinecone’s filter language nests comparison operators such as $gt under a field rather than at the top level, where fields combine with an implicit AND or with $and and $or, and any $in/$nin clause caps at 10,000 values.^[9] Filters work inside a namespace too, so most setups combine both.

For multi-tenant work, Pinecone recommends namespaces over metadata filtering, and publishes the cost gap. With 100 tenants of 1 GB each, querying one tenant’s namespace costs 1 read unit; the same query as a metadata filter across a single 100 GB namespace costs 100 read units, because a query scans the whole namespace regardless of the filter.^[8]

Neither mechanism decides what belongs in the index; they decide which vectors already there get returned. A data catalog connected via MCP can tell an agent a record is certified before it’s ever embedded; a metadata filter can only ask whether a certified tag is true on something already in Pinecone. That’s the distinction between filtering and governance, and it holds regardless of which vector database you’re running.

---

What is Pinecone used for in AI agent stacks?

Three use cases account for most of what Pinecone runs in production, and all three depend on the same upstream question: what got embedded, and was it any good.

Retrieval-augmented generation is the dominant one. A team chunks and embeds internal documents, wikis, tickets, and policy files, stores them in Pinecone, and at query time retrieves the most relevant chunks to inject into an LLM’s prompt before it answers, closing the knowledge-cutoff gap.

Agent memory is the fastest-growing use case: agents recalling prior interactions or task history write those as embeddings, with high write throughput and per-user filtering as the bar, a different access pattern from RAG’s mostly-read workload. Multi-agent systems raise the stakes further, needing write consistency and per-agent isolation a single-agent pipeline never had to consider.

Semantic search over an LLM knowledge base built from unstructured content is the third major pattern. Pinecone Nexus reached general availability in August 2026, compiling scattered enterprise data into cited artifacts that agents query directly.^[10] A vendor building a compilation layer above its own index is a signal about where raw similarity search stops, consistent with the well-documented RAG accuracy problems that have little to do with which vector database sits underneath. Autonomous agents that act without a human approving every step have the least tolerance for bad retrieval: when the data was stale or wrong, the agent acts on it. Teams that see agents fail in production trace the failure back to exactly this.

---

How much does Pinecone cost?

Serverless usage bills as storage plus read and write units, on top of a plan. Pinecone publishes four: Starter (free), Builder at $20 a month, Standard at a $50 monthly minimum, and Enterprise at a $500 monthly minimum. Overages run about $0.33 per GB of storage a month, $16 to $18 per million read units, and $4 to $4.50 per million write units, varying by cloud and region. The pricing page lists no pod rates.^[11]

A headline price in a guide like this is close to useless. What matters is your own vector count trajectory against Pinecone’s current published rate card. Check Pinecone’s own pricing page before committing, and model 12 to 18 months of growth first; read units, not storage, are where a badly partitioned index gets expensive, which is what the namespace math above prices out. A retrieval budget that ignores the context window the retrieved vectors feed into is optimizing the wrong constraint.

---

What are Pinecone’s honest limitations?

Some limits are architectural, some are published constraints, and both are worth knowing before an index is in production.

There is no self-hosted or on-premises option. Bring Your Own Cloud puts the data plane in your account, but the control plane, and your operational dependency on Pinecone staying up and priced reasonably, never moves, a real lock-in consideration since Pinecone is closed-source.^[5]

Pinecone also publishes hard numbers worth planning around, especially for anyone building hybrid retrieval: a sparse vector carries at most 2,048 non-zero values, sparse indexes accept 10 upserts and 100 queries per second, top_k tops out at 10,000, and a single result set is capped at 4 MB.^[7]

The deeper point is architectural. Pinecone scopes retrieval at query time through namespaces and metadata filters, not at ingest.^[9] Chunking strategy and embedding model choice determine retrieval quality just as much as the index, and both are decided before anything reaches Pinecone. Hybrid RAG, combining dense retrieval with sparse keyword signals, closes some of that gap but not the governance part, and whether a knowledge graph belongs alongside vector search for agent memory is a decision Pinecone leaves to you. It’s an honest tool for what it is: a retrieval engine, not a data-quality decision.

---

How does Pinecone compare to other vector databases?

Pinecone is one credible option among several; the right one depends on scale, existing infrastructure, and how much operational work a team wants to own. Self-hosted and open-source engines suit teams wanting more control at large scale; Postgres-native extensions suit teams that would rather not add infrastructure; a context graph is the right comparison for structured relationships over embeddings. Atlan covers that tradeoff in full in Top vector databases for enterprise AI, an eight-way comparison; readers starting from scratch should try What is a vector database? instead. This page’s job was narrower: what Pinecone specifically is, how it works, and where its limits sit, with advanced RAG techniques like reranking and a full enterprise RAG platform covered elsewhere.

---

What a governed context layer adds upstream of Pinecone

Pinecone answers a narrow question extremely well: given this query vector, what’s closest in what’s already indexed. A different set of questions gets answered before that, wherever the embedding pipeline starts: was this data certified for AI use, is it still current, and should a model be allowed to see it at all.

Atlan sits upstream of that gap, for a Pinecone-backed pipeline or any other. Source certification means only owner-approved data enters the embedding pipeline. Sensitivity classification blocks PII and regulated fields before they become a vector, rather than filtering after the fact. Freshness triggers connect a source-system update to a re-embed signal, so the index reflects current data. Full-pipeline lineage traces every retrieved vector back to its source table, so “what did this answer come from” has an actual answer. Atlan’s MCP Server exposes that context to agents at runtime through the same Model Context Protocol many frameworks already speak (MCP versus a standard API is its own call), so an agent querying Pinecone can check whether what it retrieved was ever supposed to be there. A semantic layer defining what business terms mean feeds the same pipeline, closing the gap between “semantically similar” and “means what the business thinks it means.”

None of this is a knock on Pinecone, a genuinely good retrieval engine. The context layer is a different, upstream layer determining whether fast retrieval is retrieval of the right thing, and context engineering is the discipline of building it deliberately rather than discovering its absence after an agent has acted on something it shouldn’t have. Teams that treat implementing an enterprise context layer as a parallel track, not an afterthought, don’t rebuild the pipeline six months in.

---

FAQs about Pinecone vector database

1. What is Pinecone used for?

Pinecone is used to store and retrieve embeddings for AI applications, most commonly retrieval-augmented generation, AI agent memory, and semantic search over unstructured content. Teams choose it when they want production-grade vector search without operating the underlying infrastructure themselves.

2. Is Pinecone a vector database or a search engine?

Pinecone is a vector database, built to store high-dimensional embeddings and retrieve them by semantic similarity rather than exact match. It is not a general-purpose search engine and doesn’t index raw text for keyword matching alone, though it can combine with keyword search in a hybrid setup.

3. How does Pinecone differ from a traditional database?

Traditional relational databases answer exact-match and range queries against structured rows. Pinecone answers approximate nearest-neighbor queries against embeddings, finding items most semantically similar to a query vector. Most production AI stacks run both: a relational database for transactional data and Pinecone for retrieval.

4. Is Pinecone open source?

No. Pinecone is closed-source and available only as a managed SaaS product, with no self-hosted deployment option. Bring Your Own Cloud lets the data plane run inside a customer’s own cloud account, but the underlying software and control plane remain proprietary to Pinecone.

5. How much does Pinecone cost?

Pinecone bills serverless usage as storage plus read and write units, across four plans: Starter (free), Builder at $20 a month, Standard at a $50 monthly minimum, and Enterprise at a $500 monthly minimum. Overages run about $0.33 per GB of storage a month, $16 to $18 per million read units, and $4 to $4.50 per million write units, varying by cloud and region. Check Pinecone’s pricing page for current rates before committing.

6. What is Pinecone serverless?

Pinecone serverless separates compute from storage so each scales independently, eliminating manual pod sizing and idle compute cost. It bills based on actual storage and read/write unit usage rather than a fixed cluster size, and is Pinecone’s recommended default for new projects.

7. Does Pinecone support hybrid search?

Yes, natively. Pinecone documents three hybrid patterns: a text-match filter with dense ranking in a single request, client-side reciprocal rank fusion across two queries, and sparse plus dense vectors in one index weighted by an alpha value. Pinecone recommends the Documents API hybrid path for new projects. Metadata filtering is a separate mechanism, not the way hybrid search is done.

8. Can Pinecone be used for AI agent memory?

Yes. Pinecone is commonly used to store an AI agent’s memory as embeddings, supporting the high write throughput and per-user filtering that memory workloads need. This differs from a mostly-read RAG workload, since agents write new memories continuously as they operate.

---
